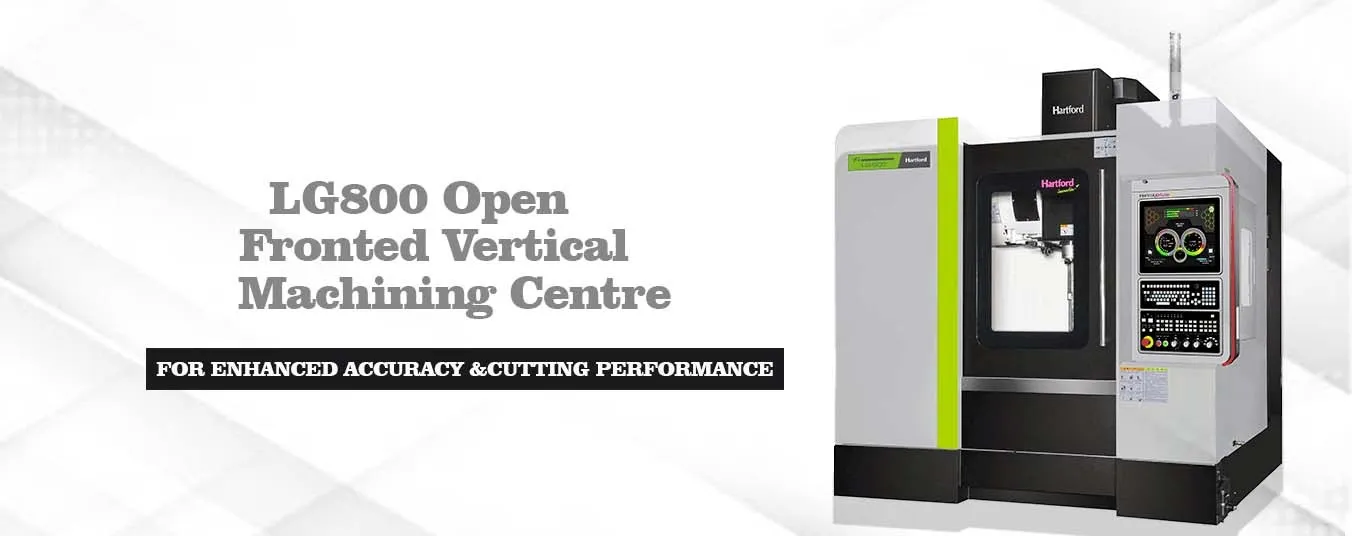

LG800 Open Fronted Vertical Machining Centre
OPEN FRONTED VERTICAL MACHINING CENTRE WITH HIGH PERFORMANCE LINEAR GUIDEWAYS FOR ENHANCED ACCURACY & CUTTING PERFORMANCE.>
-One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity. -High Performance Linear Guideways. -One Piece Spindle Head for Superior Rigidity. -30 M/Min Rapid Traverse on X & Y Axis (40 M/Min Option). -24 M/Min Rapid Traverse on Z Axis. -NCRT Options. -FANUC / HARTROL PREMIUM CNC
Technical Specification
| Product Details | Option | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| table Size | 950 X 510 MM | ||||||||||||||||
| Table Load | 500 KGS | ||||||||||||||||
| X Y Z | 800/510/630 MM | ||||||||||||||||
| Spidle Nose To Table | 100 ~ 730 MM | ||||||||||||||||
| Spindle Taper | #40 BT BBT CAT DIN | ||||||||||||||||
| Spindle Speeds | 12,000 15,000 RPM | ||||||||||||||||
| Spindle Power | 7.5 11.0 KW | ||||||||||||||||
| Rapid Traverse Rates- X / Y / Z | 30 / 30 / 24 40 / 40 / 30 M/MIN | ||||||||||||||||
| Number of ATC Stations | 24 30 | ||||||||||||||||
