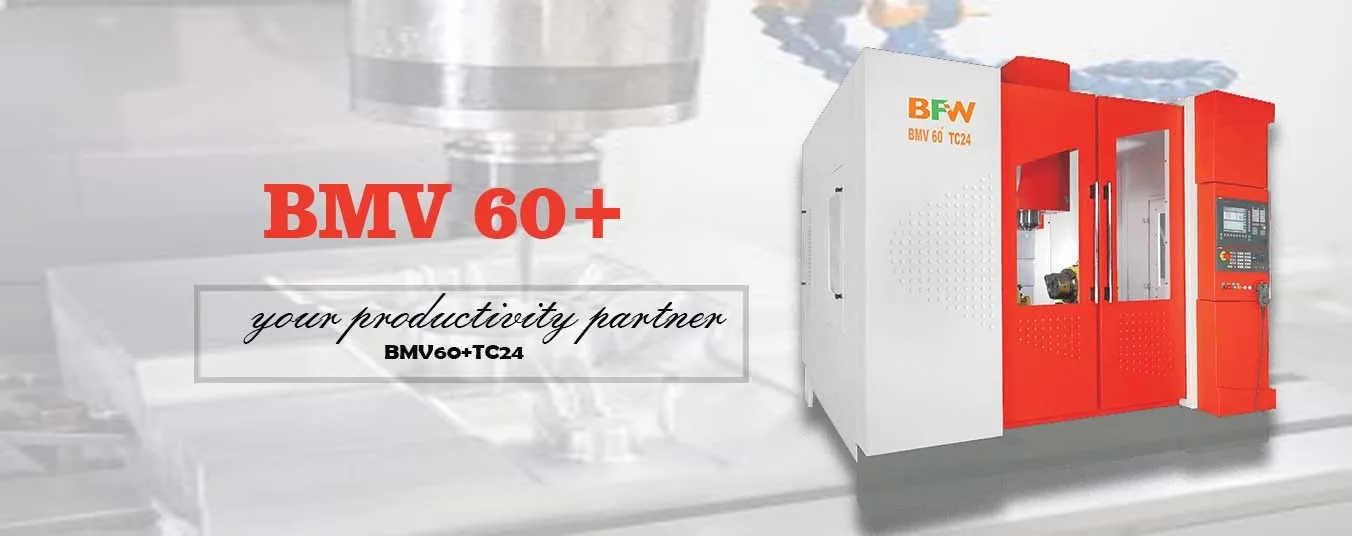

Series: BMV60+ | BMV60+TC24 | BMV60+TC20
"Vertical machining centre BMV 60+ promises unrevealed quality, precision and productivity. These machines are of C-Frame construction with rigid base, robust spindle, and high precision feed mechanism with our state-of-the-art technologies. Heavy-duty machining combined with superior accuracies is the hallmark of these machines. BMV 60+ series catering to the requirements of machining small to medium size applications for batch production with diverse range of options, we can adapt our machining centers to meet specific application requirements for your competitive manufacturing. "
Specifications
-
Capacity UNIT LastBMV60+ BMV60+ TC24 BMV60+ TC20 Table longitudinal travel (X - Axis) mm 1050 1050 1050 Table cross travel (Y - Axis) mm 610 610 610 Headstock travel (Z - Axis) mm 150 - 760 150 - 760 150 - 760 Spindle nose face to table top mm 150 - 760 150 - 760 150 - 760 Increased daylight area with column height block (Optional) mm 400 - 1010 400 - 1010 400 - 1010 Distance from Floor to table mm 1000 1000 1000 Spindle center - column front distance mm 630 630 630
